# 1.10 长短期记忆（LSTM（long short term memory）unit）

LSTM是另一种更强大的解决梯度消失问题的方法。它对应的RNN隐藏层单元结构如下图所示：

![](https://2314428465-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-Le0cHhI0S0DK8pwlrmD%2F-Le0cKOp1vaxoORIi4ak%2F-Le0csRSBGVLrIVAIhfQ%2FXnip2018-07-22_16-44-14.jpg?generation=1556953140251318\&alt=media)

相应的表达式为：

$$
\tilde c^{<t>}=tanh(W\_c\[a^{<t-1>},x^{<t>}]+b\_c)
$$

$$
\Gamma\_u=\sigma(W\_u\[a^{<t-1>},x^{<t>}]+b\_u)
$$

$$
\Gamma\_f=\sigma(W\_f\[a^{<t-1>},x^{<t>}]+b\_f)
$$

$$
\Gamma\_o=\sigma(W\_o\[a^{<t-1>},x^{<t>}]+b\_o)
$$

$$
c^{<t>}=\Gamma\_u\*\tilde c^{<t>}+\Gamma\_f\*c^{<t-1>}
$$

$$
a^{<t>}=\Gamma\_o\*c^{<t>}
$$

LSTM包含三个gates：$$\Gamma\_u,\Gamma\_f,\Gamma\_o$$，分别对应update gate，forget gate和output gate

在**LSTM**中不再有$$a^{<t>} = c^{<t>}$$的情况

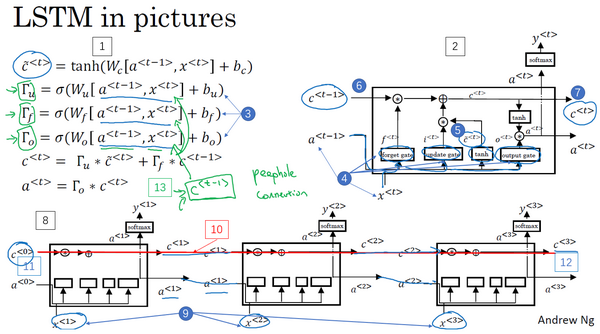

红线显示了只要正确地设置了遗忘门和更新门，**LSTM**很容易把$$c^{<0>}$$的值一直往下传递到右边，比如$$c^{<3>} = c^{<0>}$$。这就是为什么**LSTM**和**GRU**非常擅长于长时间记忆某个值

[![](https://github.com/fengdu78/deeplearning_ai_books/raw/master/images/94e871edbd87337937ce374e71d56e42.png)](https://github.com/fengdu78/deeplearning_ai_books/blob/master/images/94e871edbd87337937ce374e71d56e42.png)

“**窥视孔连接**”（**peephole connection**）:门值不仅取决于$$a^{<t-1>}$$和$$x^{<t>}$$，也取决于上一个记忆细胞的值（$$c^{<t-1>}$$），即$$c^{<t-1>}$$也能影响门值

如果考虑$$c^{<t-1>}$$对$$\Gamma\_u,\Gamma\_f,\Gamma\_o$$的影响，可加入“窥视孔连接”，对LSTM的表达式进行修改：

$$
\tilde c^{<t>}=tanh(W\_c\[a^{<t-1>},x^{<t>}]+b\_c)
$$

$$
\Gamma\_u=\sigma(W\_u\[a^{<t-1>},x^{<t>},c^{<t-1>}]+b\_u)
$$

$$
\Gamma\_f=\sigma(W\_f\[a^{<t-1>},x^{<t>},c^{<t-1>}]+b\_f)
$$

$$
\Gamma\_o=\sigma(W\_o\[a^{<t-1>},x^{<t>},c^{<t-1>}]+b\_o)
$$

$$
c^{<t>}=\Gamma\_u\*\tilde c^{<t>}+\Gamma\_f\*c^{<t-1>}
$$

$$
a^{<t>}=\Gamma\_o\*c^{<t>}
$$

**LSTM**主要的区别：比如（上图编号13）有一个100维的隐藏记忆细胞单元，第$$i$$个$$c^{<t-1>}$$的元素只会影响第$$i$$个元素对应的那个门，所以关系是一对一的，并不是任意这100维的$$c^{<t-1>}$$可以影响所有的门元素

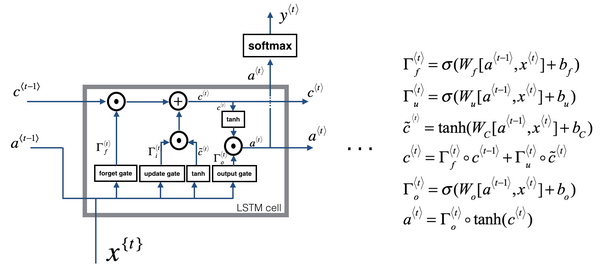

**LSTM**前向传播图：

[![ST](https://github.com/fengdu78/deeplearning_ai_books/raw/master/images/LSTM.png)](https://github.com/fengdu78/deeplearning_ai_books/blob/master/images/LSTM.png)

![](https://2314428465-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-Le0cHhI0S0DK8pwlrmD%2F-Le0cKOp1vaxoORIi4ak%2F-Le0csR_vwB9OhLINSPL%2FXnip2018-07-22_16-50-24.jpg?generation=1556953140584587\&alt=media)

**GRU**：模型简单，更容易创建一个更大的网络，只有两个门，在计算上运行得更快，且可以扩大模型的规模

**LSTM：**&#x66F4;加强大和灵活，因为它有三个门而不是两个


---
