# 2.5 不匹配数据划分的偏差和方差（Bias and Variance with mismatched data distributions）

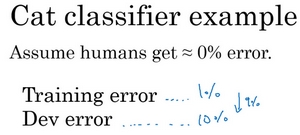

当训练集和开发集、测试集不同分布时，分析偏差和方差的方式：

[![](https://github.com/fengdu78/deeplearning_ai_books/raw/master/images/5cbede5222b199f84dc491e0550435b6.png)](https://github.com/fengdu78/deeplearning_ai_books/blob/master/images/5cbede5222b199f84dc491e0550435b6.png)

分析的问题在于，当看训练误差，再看开发误差，有两件事变了，很难确认这增加的9%误差率有多少是因为：

* 算法只见过训练集数据，没见过开发集数据（方差）
* 开发集数据来自不同的分布

为了弄清楚哪个因素影响更大，定义一组新的数据，称之为**训练-开发集**，是一个新的数据子集。从训练集的分布里分出来，但不会用来训练网络

[![](https://github.com/fengdu78/deeplearning_ai_books/raw/master/images/66fcfec7152b504adb2e6124291f4a68.png)](https://github.com/fengdu78/deeplearning_ai_books/blob/master/images/66fcfec7152b504adb2e6124291f4a68.png)

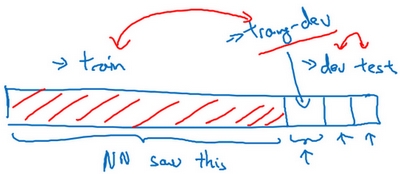

随机打散训练集，分出一部分训练集作为训练-开发集（training-dev），训练集、训练-开发集来自同一分布

[![](https://github.com/fengdu78/deeplearning_ai_books/raw/master/images/6a3c48f8a71b678c2769165f38523635.png)](https://github.com/fengdu78/deeplearning_ai_books/blob/master/images/6a3c48f8a71b678c2769165f38523635.png)

只在训练集训练神经网络，不让神经网络在训练-开发集上跑后向传播。为了进行误差分析，应该看分类器在训练集上的误差、训练-开发集上的误差、开发集上的误差

[![](https://github.com/fengdu78/deeplearning_ai_books/raw/master/images/c5d2293143857294c49859eb875272f5.png)](https://github.com/fengdu78/deeplearning_ai_books/blob/master/images/c5d2293143857294c49859eb875272f5.png)

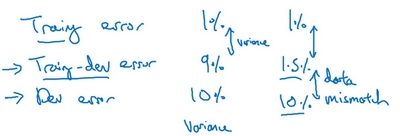

* 假设训练误差是1%，训练-开发集上的误差是9%，开发集误差是10%，存在方差，因为训练-开发集的错误率是在和训练集来自同一分布的数据中测得的，尽管神经网络在训练集中表现良好，但无法泛化到来自相同分布的训练-开发集
* 假设训练误差为1%，训练-开发误差为1.5%，开发集错误率10%。方差很小，当转到开发集时错误率大大上升，是**数据不匹配**的问题

[![](https://github.com/fengdu78/deeplearning_ai_books/raw/master/images/b997fa8695062ca7332b18d51767b7df.png)](https://github.com/fengdu78/deeplearning_ai_books/blob/master/images/b997fa8695062ca7332b18d51767b7df.png)

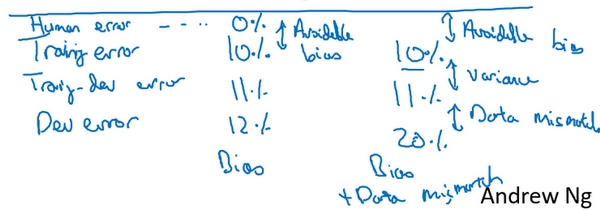

* 如果训练集误差是10%，训练-开发误差是11%，开发误差为12%，人类水平对贝叶斯错误率的估计大概是0%，存在可避免偏差问题
* 如果训练集误差是10%，训练-开发误差是11%，开发误差是20%，有两个问题
  * 可避免偏差问题
  * 数据不匹配问题

[![](https://github.com/fengdu78/deeplearning_ai_books/raw/master/images/5bbfa44bc294dd33f01346b1aa87d930.png)](https://github.com/fengdu78/deeplearning_ai_books/blob/master/images/5bbfa44bc294dd33f01346b1aa87d930.png)

如果加入测试集错误率，而开发集表现和测试集表现有很大差距，可能对开发集过拟合，需要一个更大的开发集

如果人类的表现是4%，训练错误率是7%，训练-开发错误率是10%。开发集是6%。可能开发测试集分布比实际处理的数据容易得多，错误率可能会下降

[![](https://github.com/fengdu78/deeplearning_ai_books/raw/master/images/347df851fe3809b308850a9e14cfdbb0.png)](https://github.com/fengdu78/deeplearning_ai_books/blob/master/images/347df851fe3809b308850a9e14cfdbb0.png)

Human level 4%和Training error 7%衡量了可避免偏差大小，Training error 7%和Training-dev error 10%衡量了方差大小，Training-dev error 10%和Dev/Test dev 6%衡量了数据不匹配问题的大小

rearview mirror speech data 6%和Error on examples trained on 6%：获得这个数字的方式是让一些人标记他们的后视镜语音识别数据，看看人类在这个任务里能做多好，然后收集一些后视镜语音识别数据，放在训练集中，让神经网络去学习，测量那个数据子集上的错误率，如果得到rearview mirror speech data 6%和Error on examples trained on 6%，说明在后视镜语音数据上达到人类水平

General speech recognition Human level 4%和rearview mirror speech data 6%：说明后视镜的语音数据比一般语音识别更难，因为人类都有6%的错误，而不是4%的错误

[![](https://github.com/fengdu78/deeplearning_ai_books/raw/master/images/347df851fe3809b308850a9e14cfdbb0.png)](https://github.com/fengdu78/deeplearning_ai_books/blob/master/images/347df851fe3809b308850a9e14cfdbb0.png)

**总结**：

开发集、测试集不同分布：

* 可以提供更多训练数据，有助于提高学习算法的性能
* 潜在问题不只是偏差和方差问题，还有数据不匹配
